McLaren will race its model of the so-called ‘Macarena’ rear-wing idea – however not till an unspecified level sooner or later, in accordance with staff principal Andrea Stella.
It is understood that the explanation for not dashing to race the brand new rear wing shouldn’t be linked to Crimson Bull’s well-documented points with its comparable design. As a substitute, McLaren is being cautiously pragmatic, for the reason that rotating rear wing provides to the complexities of managing automobile behaviour because it strikes out and in of Straight Line Mode (SLM).
McLaren deliberate to check its new wing in Austria however made a late decision to abandon the evaluation. It then waited until Hungary to run it for the primary time in FP1 on Oscar Piastri’s automobile, pushed by Leonardo Fornaroli, earlier than parking it for the rest of the occasion.
Max Verstappen crashed on the Crimson Bull Ring and Silverstone, prompting his Crimson Bull staff to temporarily shelve its pivoting rear wing based mostly on suspicions {that a} delay in airflow reattachment when the wing returned to cornering mode made Verstappen’s automobile unstable.
“I’ve to say it has been an advanced challenge,” Stella advised media together with Autosport.
“Which was no shock as a result of after we noticed Ferrari introducing the wing in Bahrain check and testing it in China within the first lap, [Lewis] Hamilton spun. After which it took a number of extra occasions to truly being in situation to race it.
“We knew it was going to be a posh challenge, so I’ve to say that our engineering division has delivered this challenge in a approach that appears well-behaved – just like the wing by way of mechanical actuation, occasions of the actuation, as a result of there’s some limitations by the rules, not just for aerodynamic causes.
Ferrari was the primary staff to run its rotating rear wing, which operates in a different way to the McLaren and Crimson Bull examples
Photograph by: Alastair Staley / LAT Photos through Getty Photos
“After which the general behaviour from an aerodynamic perspective, reattachment – so the time it takes for the automobile to regain the load, not solely the load on the wing, the load on your entire automobile as pushed from the wing.
“All this I’ve to say has been fairly per expectation, so it has been a optimistic log off of this idea and we glance ahead now to introducing this idea at some future occasions.”
These ideas are a basic instance of thinking-outside-the-box inventive engineering that’s potential for the primary time this season as a result of the rules are comparatively open. F1 first adopted the precept of legally shedding drag in a straight line with the Drag Discount System (DRS) in 2011, which permitted the higher rear wing airplane to flatten in prescribed areas of the monitor.
The velocity and actuation process for this was clearly outlined, together with the scale of the wing planes themselves. However beneath the brand new ruleset launched this season, during which entrance and rear wing flaps can open in specified Straight Line Mode zones, the velocity of transition from one state to the opposite is outlined (inside 0.4s), however not the means by which it strikes between open and closed.

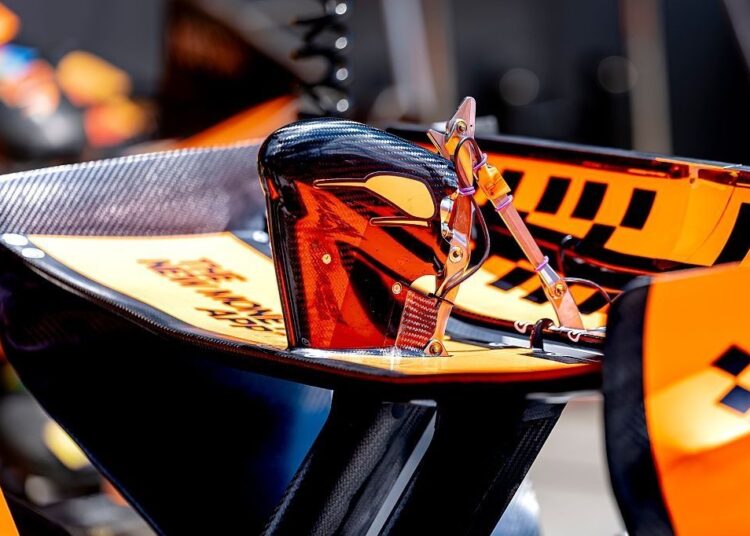

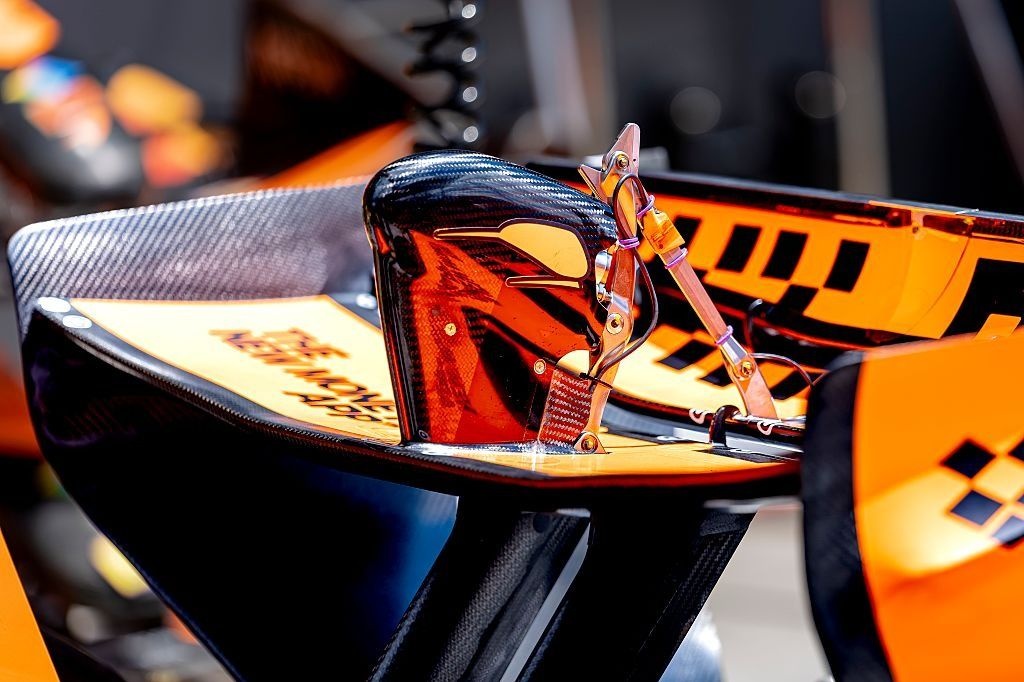

McLaren’s pivoting rear wing is nearer to Crimson Bull’s than Ferrari’s, in that it makes use of a central actuator to handle the rotation moderately than having a mechanism constructed into the endplates. Additionally like Crimson Bull’s, it pivots forwards moderately than backwards.
The technique of actuation offers it a component of air braking because it closes. The trade-off between the 2 ideas is that Crimson Bull and McLaren settle for a level of aerodynamic blockage from the actuator and its shroud in alternate for having a wider area between the higher and decrease planes when SLM is lively.
Ferrari’s additionally has to take an extended path between open and closed due to the angle of rotation.
Verstappen shunted in qualifying in Austria, and a delay in airflow reattachment to the rear wing was cited as one potential contributory issue
Photograph by: Getty Photos
One of many much less predictable results of the brand new rules has been the shift in tyre loading through the transition between SLM being on and off. It is because the airflow would not reattach to the wing planes immediately, however takes fractions of a second to re-establish its path.
Groups knew forward of the season that this may be a major efficiency issue, however had been unable to measure it precisely with simulation instruments such because the wind tunnel and Computational Fluid Dynamics (CFD).
The true extent of the shifts in loadings, and their impact on automobile behaviour, might solely be measured on the monitor.
This additionally applies to the theoretical advantages of the rotating rear wings. The airflow across the rear of an F1 automobile is tremendously busy due to the interplay between the automobile’s aerodynamic surfaces and the turbulent wake of the rear wheels.
Simulating this with nice accuracy may be very troublesome within the wind tunnel, the place mannequin measurement is capped at 60% scale and the wind is mostly blowing in a single route. Traditionally it’s troublesome to entry a automobile’s aerodynamic efficiency when it is in a state of yaw (i.e. turning), or going through totally different wind instructions. The totally different deflection properties of the mannequin tyres, in addition to their smaller measurement, additionally tends to skew outcomes.
Therefore McLaren has completed plenty of FP1 working with massive aero rakes fitted behind the rear wheels to validate substantial bodywork modifications such because the latest-spec ground, launched in Hungary, in addition to its pivoting wing. Sensible measurements trackside are the actual proof (or in any other case) of any theoretical features.
“There was a query about comparability with Crimson Bull, however I do not assume the wind tunnel is a significant factor by way of figuring out the aerodynamic behaviour in reattachment,” Stella mentioned.
“I believe you should utilize another instruments for that, after which an important instrument, particularly when you’ve got this type of sophisticated challenge, even from an aerodynamic perspective, stays what you observe on the monitor. So it was vital for us to accumulate knowledge right here trackside, since you would have by no means relied on a wind tunnel just for such a fragile challenge.”
