The very last thing {that a} Components 1 aerodynamicist needs is to see their automotive dangling precariously from a crane – past the implication of their driver being rendered unable to take additional half within the session.
F1 groups wish to maintain their ground designs secret, since that is the a part of the automotive that generates essentially the most downforce. A lot of the element tends to stay hidden when the automotive is on-track or within the storage, however its underbelly is susceptible to being uncovered if a crane is required to raise a automotive to security.
For instance, Sergio Perez‘s qualifying crash at Monaco in 2023 was a godsend for the opposite groups on the grid; Purple Bull was dominant within the early a part of the ground-effect rebirth, however the view of his RB19 from beneath offered different groups with the possibility to see why the automotive was so efficient. The images could not inform the aerodynamicists the specifics, however it may give them a lead in the event that they ran some simulations with the same design.

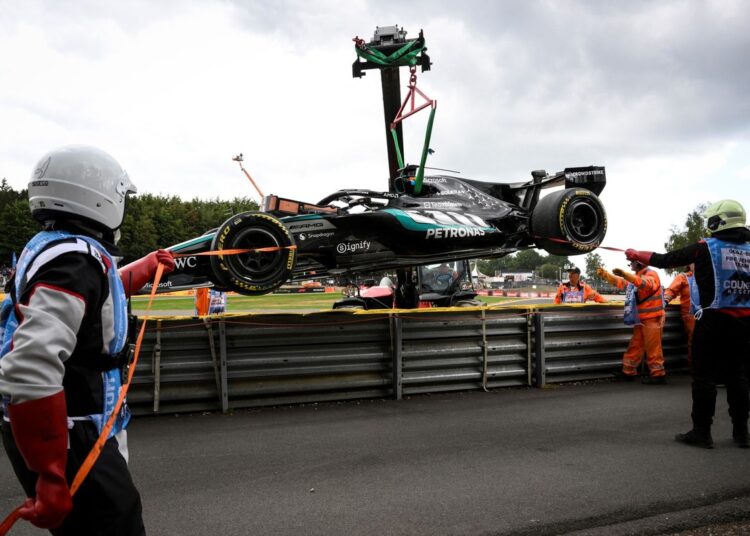

It isn’t fairly the identical in 2026 as the ground is a bit much less crucial, however the view of the underside of George Russell‘s Mercedes from Spa-Francorchamps tells us a bit about how the flooring on the higher finish of the grid this yr are constructed.Â
This is a better have a look at the again finish of this yr’s Mercedes.
Picture by: circuitpics.de
1. Diffuser, accountable for the enlargement of airflow, making a low-pressure space behind the automotive. Airflow beneath the automotive is sucked into this, creating downforce.
2. Diffuser kick line. That is the place the ground is now not required to be flat.Â
3. Plank, or skid block. Manufactured from resin, and used to make sure vehicles aren’t working too low. If this wears down by greater than 1mm in a race, then that is thought-about grounds for disqualification.
4. Outer ground edge. Sits greater than the primary ground physique, a measure by the FIA to maintain a lid on downforce.
5. Outer diffuser elements, which hyperlink between the wheel hub aero and the diffuser itself.
6. Diffuser strake. Permitted to assist situation movement beneath the automotive.
7. Diffuser ‘gap’ – an addition explored this yr to assist feed the whole thing of the diffuser.
A couple of different particulars could be seen on the picture above, such because the small tabs alongside the highest fringe of the diffuser. Mercedes had operated with bigger variants on this design to develop the working quantity of the diffuser, however was required to cut back the dimensions of those by the FIA.
Moreover, the suspension elements and beam wing in entrance of the diffuser are additionally angled similarly to assist develop this low-pressure zone produced by the diffuser. All of those elements are aerodynamically linked, together with the rear wing, to provide a excessive and constant stage of rear-end downforce.
The outer diffuser elements are successfully a carry-over from final yr’s brake duct-mounted cascade winglets, extending this working space additional.
Below final yr’s guidelines, the diffuser needed to be fairly tightly enclosed to make sure there was minimal interference with the movement buildings produced beneath. The decreased sensitivity this yr has prompted a couple of groups to implement a ‘gap’.
Utilizing this, the underbody airflow can now develop additional and successfully makes use of the ‘inside’ diffuser elements as a further strake to handle the movement right here.Â
George Russell, Mercedes, Lewis Hamilton, Ferrari
Picture by: John Thys / AFP through Getty Photos
Given the size of the ground physique, one of many key issues to beat is movement separation. Holding the airflow energised and accelerating beneath may also help to beat the lack of power on account of floor friction, however breaking apart the bodywork on the rear additionally helps right here.Â
The slots on the nook of the ground, forward of the rear tyre, may also be noticed. Mercedes made a couple of adjustments right here for the Canadian Grand Prix to maintain “tyre squirt” in verify – this being the scenario the place the tyres can squeeze turbulent movement sideways – doubtlessly into the diffuser space – as they rotate and deform.
Even with decreased ranges of complexity over the earlier ruleset, there’s a variety of work that goes into making the diffuser as potent as crucial. With out that, the rear axle is rather a lot much less secure and a driver is unable to place the ability down onto the street with out sliding about.
When the again finish of the automotive is unpredictable, and unable to supply sufficient of a platform to steadiness out the entrance, the driving force merely has no confidence in what they’re driving.
